MT9074 - T1/E1/J1 Single Chip Transceiver

Mitel Networks Corporation

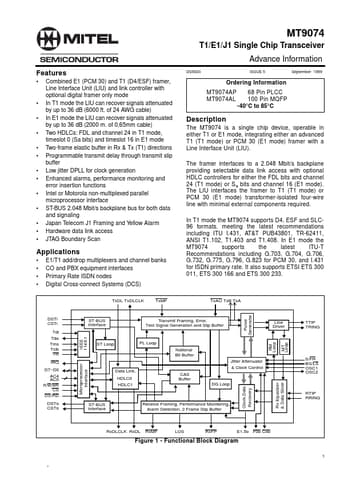

The MT9074 by Mitel Networks Corporation is a T1/E1/J1 Single Chip Transceiver. Below is the official datasheet preview.

📥 Download Datasheet

MT9074 T1/E1/J1 Single Chip Transceiver by Mitel Networks Corporation - Datasheet Preview — Official preview page of the **MT9074** T1/E1/J1 Single Chip Transceiver datasheet (Mitel Networks Corporation).

Datasheet Details

Part number	MT9074
Manufacturer	Mitel Networks Corporation
File Size	372.75 KB
Description	T1/E1/J1 Single Chip Transceiver
Datasheet	MT9074_MitelNetworksCorporation.pdf
Additional preview pages of the MT9074 datasheet.

MT9074 Product details

Description

The MT9074 is a single chip device, operable in either T1 or E1 mode, integrating either an advanced T1 (T1 mode) or PCM 30 (E1 mode) framer with a Line Interface Unit (LIU).

Features

Combined E1 (PCM 30) and T1 (D4/ESF) framer, Line Interface Unit (LIU) and link controller with optional digital framer only mode In T1 mode the LIU can recover signals attenuated by up to 36 dB (6000 ft. of 24 AWG cable) In E1 mode the LIU can recover signals attenuated by up to 36 dB (2000 m. of 0.65mm cable) Two HDLCs: FDL and channel 24 in T1 mode, timeslot 0 (Sa bits) and timeslot 16 in E1 mode Two-frame elastic buffer in Rx & Tx (T1) directions Programmable transmit delay through.
