MT9075B Datasheet, Transceiver, Mitel Networks Corporation

MT9075B Features

• Transceiver
• Combined PCM 30 framer, Line Interface Unit (LIU) and link controllers in a 68 pin PLCC or 100 pin MQFP package Selectable bit rate data link access with optional S a bits HDL

PDF File Details

Part number:

MT9075B

Manufacturer:

Mitel Networks Corporation

File Size:

347.03kb

Download:

📄 Datasheet

Description:

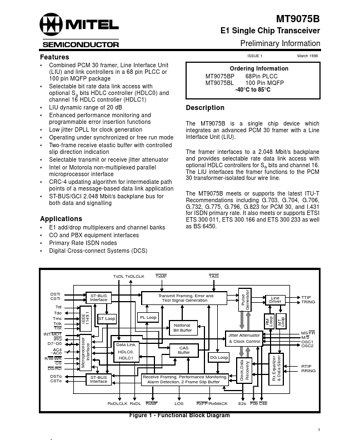

E1 single chip transceiver. The MT9075B is a single chip device which integrates an advanced PCM 30 framer with a Line Interface Unit (LIU). The framer interface

MT9075B Application

• Applications
• E1 add/drop multiplexers and channel banks CO and PBX equipment interfaces Primary Rate ISDN no
