SP5512 1.3GHz Bidirectional I2C BUS Controlled Synthesiser

WRITE MODE (FREQUENCY SYNTHESIS) When the device is in the write mode Bytes 213 select the synthesised frequency while Bytes 415 select the output port states and charge pump information. Once the correct address is received and acknowledged, the first bit of the next byte determines whether that b.

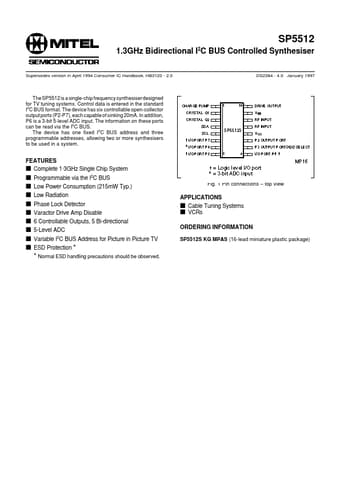

SP5512 1.3GHz Bidirectional I2C BUS Controlled Synthesiser Supersedes version in April 1994 Consumer IC Handbook, HB3120 - 2.0 DS2384 - 4.0 January 1997 The SP5512 is a single-chip frequency synthesiser designed for TV tuning systems. Control data is entered in the standard I2C BUS format. The device has six controllable open-collector output ports (P2-P7), each capable of sinking 20mA. In addition, P6 is a 3-bit 5-level ADC input. The information on these ports can be read via the I2C BUS. The.

SP5512 Features

* s Complete 1

* 3GHz Single Chip System s s s s s s s s s Programmable via the I2C BUS Low Power Consumption (215mW Typ.) Low Radiation Phase Lock Detector Varactor Drive Amp Disable 6 Controllable Outputs, 5 Bi-directional 5-Level ADC Variable I2C BUS Address for Picture in Picture TV ESD Protec

SP5512 Datasheet (241.92 KB)

Preview of SP5512 PDF
SP5512 Datasheet Preview Page 2 SP5512 Datasheet Preview Page 3

Datasheet Details

Part number:

SP5512

Manufacturer:

Mitel Networks

File Size:

241.92 KB

Description:

1.3ghz bidirectional i2c bus controlled synthesiser.
