SP5511

Bidirectional I2C Bus 4-Address Synthesiser

Zarlink Semiconductor

SP5511 Features

* s Complete 1

* 3GHz Single Chip System

* I/O PORT P6 † I/O PORT P5 † I/O PORT P4 s s s s s s s s s s Programmable via the I C BUS Low Power Consumption (240mW Typ.) Low Radiation Phase Lock Detector Varactor Drive Amp Disable 7 Controllable Outputs, 4 Bi-directional (SP5511) 4 Bi-directiona

SP5511 General Description

WRITE MODE (FREQUENCY SYNTHESIS) When the device is in the write mode Bytes 213 select the synthesised frequency while Bytes 415 select the output port states and charge pump information. Once the correct address is received and acknowledged, the first Bit of the next Byte determines whether that B.

SP5511 Datasheet (182.22 KB)

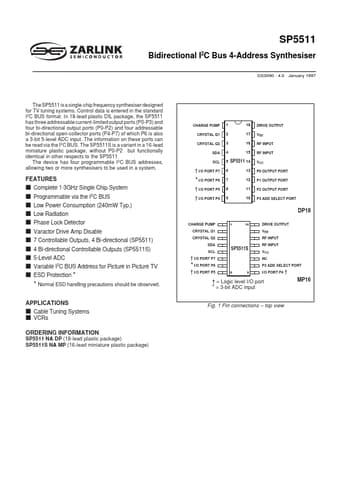

SP5511 Datasheet Preview — Preview of SP5511 PDF

Datasheet Details

Part number:

SP5511

Manufacturer:

Zarlink Semiconductor

File Size:

182.22 KB

Description:

Bidirectional i2c bus 4-address synthesiser.
SP5511 Bidirectional I2C Bus 4-Address Synthesiser DS3090 - 4.0 January 1997 The SP5511 is a single-chip frequency synthesiser designed for TV tuning.
