SP5055 Datasheet, synthesiser equivalent, Mitel Networks

SP5055 Features

• Synthesiser s Complete 2.6GHz Single Chip System s Programmable via I2C BUS s Low power consumption (5V 65mA) s Low Radiation s Phase Lock Detector s Varactor Drive Amp Disable s 6 Controllable Ou

PDF File Details

Part number:

SP5055

Manufacturer:

Mitel Networks

File Size:

197.70kb

Download:

📄 Datasheet

Description:

2.6ghz bidirectional i2c bus controlled synthesiser. WRITE MODE (FREQUENCY SYNTHESIS) When the device is in the write mode Bytes 2 + 3 select the synthesised frequency while bytes 4 + 5

SP5055 Application

• Applications s Full ESD Protection

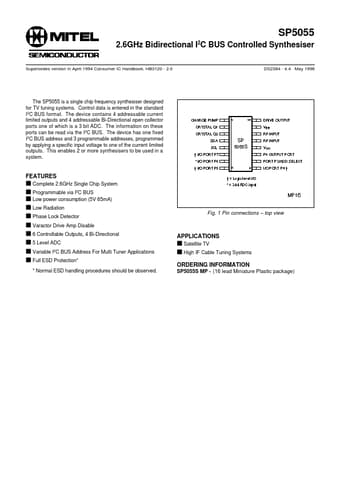

• Normal ESD handling procedures should be observed. Fig. 1 Pin connections
    – t
