BCR10CM, TRIAC

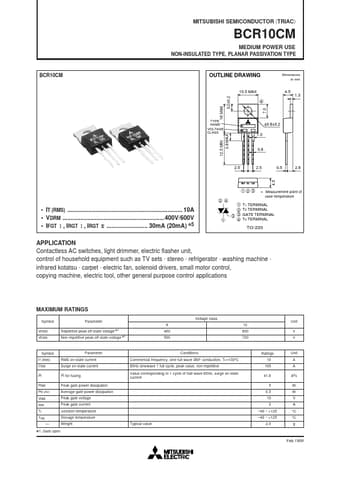

MITSUBISHI SEMICONDUCTOR 〈TRIAC〉 BCR10CM MEDIUM POWER USE NON-INSULATED TYPE, PLANAR PASSIVATION TYPE BCR10CM OUTLINE DRAWING 10.5 MAX Dimensions in mm 4.5 4 16 MAX 3.2±0.2 1.3 ∗ 12.5 MIN 3.8 MAX TYPE NAME VOLTAGE CLASS 1.0 0.8 2.5 2.5 7.0 φ3.6±0.2 0.5 2.6 123 24 1 2 33 4 ∗ Measurement point of case temperature IT (RMS) 10A VDRM 400V/600V IFGT !, IRGT !, IRGT # 30mA (20mA) V5 1 T1 TERMINAL T2 TERMINAL GATE TERMINAL T2 TERMINAL TO-220 APPLI
