BCR10CS TRIAC

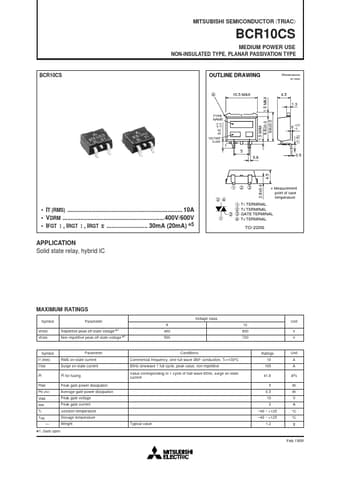

MITSUBISHI SEMICONDUCTOR 〈TRIAC〉 BCR10CS MEDIUM POWER USE NON-INSULATED TYPE, PLANAR PASSIVATION TYPE BCR10CS OUTLINE DRAWING Dimensions in mm 4 1.5 MAX 10.5 MAX 4.5 1.3 1.5 MAX 8.6±0.3 9.8±0.5 TYPE NAME ∗ 3.0 0.5 +0.3 0 0 +0.3 VOLTAGE CLASS 1 5 0.8 0.5 1 2 3 24 2.6±0.4 4.5 ∗ Measurement point of case temperature IT (RMS) 10A VDRM 400V/600V IFGT !, IRGT !, IRGT # 30mA (20mA) V5 APPLICATION Solid state relay, hybrid IC 1 1 .
