CT25AS-8 - STROBE FLASHER USE

📥 Download Datasheet

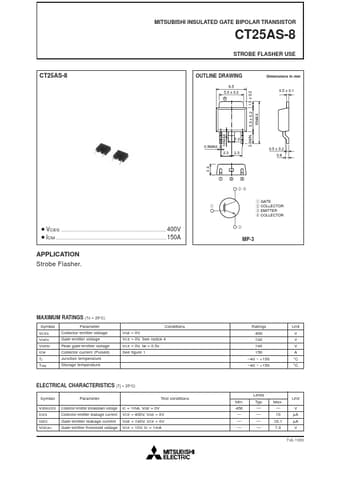

Datasheet preview – CT25AS-8

Datasheet Details

Part number CT25AS-8
Manufacturer Mitsubishi Electric Semiconductor
File Size 32.43 KB
Description STROBE FLASHER USE
Datasheet download datasheet CT25AS-8 Datasheet
Additional preview pages of the CT25AS-8 datasheet.

📁 Similar Datasheet

  • CT25-T - Current Transducers (LEM)
  • CT25-T - Current Transducer (LEM)
  • CT2500 - Interface Protocol Chip (Aeroflex Circuit Technology)
  • CT2501 - Phototransistor Optocoupler (CT Micro)
  • CT2505 - 10 Mhz Low Level Serial Interface (Marconi)
  • CT2505 - Diode (Crimson)
  • CT2510 - Dual Redundant Remote Terminal (Aeroflex Circuit Technology)
  • CT2511 - Dual Redundant Remote Terminal (Aeroflex Circuit Technology)
  • CT2512 - Dual Redundant Remote Terminal (Aeroflex Circuit Technology)
  • CT2513 - Dual Redundant Remote Terminal (Aeroflex Circuit Technology)
Other Datasheets by Mitsubishi Electric Semiconductor

Full PDF Text Transcription

Click to expand full text
MITSUBISHI INSULATED GATE BIPOLAR TRANSISTOR CT25AS-8 STROBE FLASHER USE CT25AS-8 OUTLINE DRAWING 6.5 5.0 ± 0.2 4 Dimensions in mm 5.5 ± 0.2 1.5 ± 0.2 0.5 ± 0.1 1.0MAX. 1.0 0.9MAX. 2.3MIN. 10MAX. 0.5 ± 0.2 2.3 2.3 0.8 2.3 1 2 3 wr q GATE w COLLECTOR e EMITTER r COLLECTOR e q ¡VCES ................................................................................ 400V ¡ICM .................................................................................... 150A MP-3 APPLICATION Strobe Flasher. MAXIMUM RATINGS Symbol VCES VGES VGEM ICM Tj Tstg (Tc = 25°C) Parameter Collector-emitter voltage Gate-emitter voltage Peak gate-emitter voltage Collector current (Pulsed) Junction temperature Storage temperature Conditions VGE = 0V VCE = 0V, See notice 4 VCE = 0V, tw = 0.
