PS21961-4S Intelligent Power Module

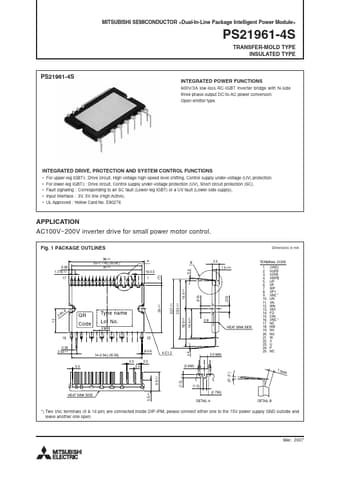

MITSUBISHI SEMICONDUCTOR PS21961-4S TRANSFER-MOLD TYPE INSULATED TYPE PS21961-4S INTEGRATED POWER FUNCTIONS 600V/3A low-loss RC-IGBT inverter bridge with N-side three phase output DC-to-AC power conversion. Open emitter type. INTEGRATED DRIVE, PROTECTION AND SYSTEM CONTROL FUNCTIONS For upper-leg IGBTS :Drive circuit, High voltage high-speed level shifting, Control supply under-voltage (UV) prot.

PS21961-4S Features

* tage rising : After the voltage level reaches UVDr, the circuits start to operate when next input is applied. b2. Normal operation : IGBT ON and carrying current. b3. Under voltage trip (UVDt). b4. IGBT OFF in spite of control input condition. b5. FO outputs (tFO ≥ 20µs and FO outputs continuously d
