PS21961 Intelligent Power Module

PS21961 Description

PS21961, PS21961-A, PS21961-C Powerex, Inc., 173 Pavilion Lane, Youngwood, Pennsylvania 15697-1800 (724) 925-7272 Intellimod™ Module Dual-In-Line Int.
DIP-IPMs are intelligent power modules that integrate power devices, drivers, and protection circuitry in an ultra compact dual-in-line transfer-mold.

PS21961 Applications

* £ Refrigerators £ Air Conditioners £ Small Servo Motors £ Small Motor Control Ordering Information: PS21961 is a 600V, 3 Ampere short pin DIP Intelligent Power Module. PS21961-A
* long pin type PS21961-C
* zigzag pin type
* Use either Pin 9 or Pin 16 for the ground connection.

📥 Download Datasheet

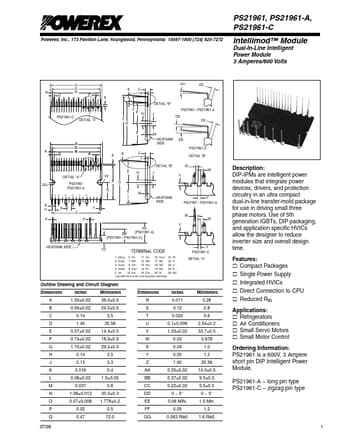

Preview of PS21961 PDF
datasheet Preview Page 2 datasheet Preview Page 3
