CM200RL-12NF IGBT Module

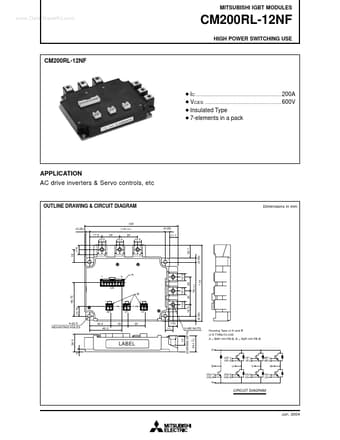

MITSUBISHI IGBT MODULES www.DataSheet4U.com CM200RL-12NF HIGH POWER SWITCHING USE CM200RL-12NF ¡IC 200A ¡VCES 600V ¡Insulated Type ¡7-elements in a pack APPLICATION AC drive inverters & Servo controls, etc OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 135 (6.05) 17.5 10.5 (13) 110 ±0.5 26 10.5 26 10.5 (6.05) 11.7 18 18.7 B 1 8 10.5 A N 20 48.75 10.5 1 1 1 P 13.75 4-φ5.5 MOUNTING HOLES 30.5 46.3 25 25 (13) 11 6-M5 NUTS (SCREWING DEPTH) (6.05) WP VP UP 16.5.
