CM200RX-12A IGBT

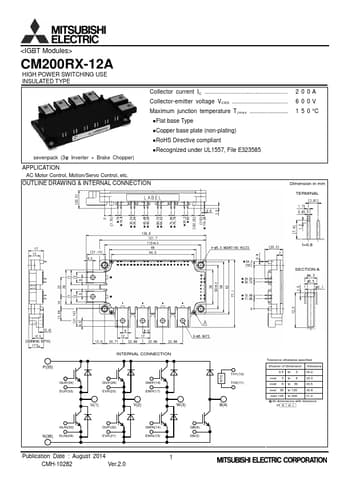

CM200RX-12A HIGH POWER SWITCHING USE INSULATED TYPE sevenpack (3φ Inverter + Brake Chopper) Collector current IC …… Collector-emitter voltage VCES … Maximum junction temperature Tjmax Flat base Type Copper base plate (non-plating) RoHS Directive compliant Recognized under UL1557, File E323585 2 0 0A 6 0 0V 1 5 0 °C APPLICATION AC Motor Control, Motion/Servo Control, etc. OUTLINE DRAWING & INTERNAL CONNECTION Dimension in mm TERMINAL t=0.8 SECTION A P(3.
