QM15DX-24 Datasheet - Mitsubishi Electric

QM15DX-24 Intelligent Power Module

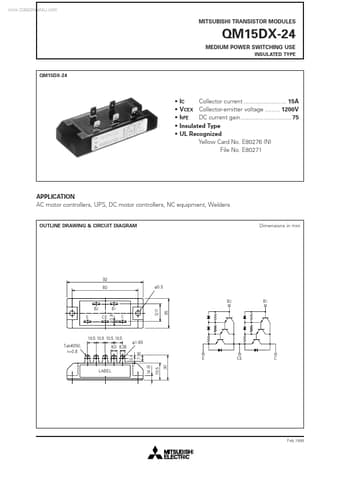

www.DataSheet4U.com MITSUBISHI TRANSISTOR MODULES QM15DX-24 MEDIUM POWER SWITCHING USE INSULATED TYPE QM15DX-24 IC Collector current 15A VCEX Collector-emitter voltage 1200V hFE DC current gain 75 Insulated Type UL Recognized Yellow Card No. E80276 (N) File No. E80271 APPLICATION AC motor controllers, UPS, DC motor controllers, NC equipment, Welders OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 92 80 φ5.5 B2 (21) 35 B1 B2 E CE .

QM15DX-24_MitsubishiElectric.pdf

Preview of QM15DX-24 PDF
QM15DX-24 Datasheet Preview Page 2 QM15DX-24 Datasheet Preview Page 3

Datasheet Details

Part number:

QM15DX-24

Manufacturer:

Mitsubishi Electric

File Size:

97.98 KB

Description:

Intelligent power module.
