QM150DY-24BK - Transistor Module

📥 Download Datasheet

Datasheet preview – QM150DY-24BK

Datasheet Details

Part number QM150DY-24BK
Manufacturer Mitsubishi Electric Semiconductor
File Size 83.70 KB
Description Transistor Module
Datasheet download datasheet QM150DY-24BK Datasheet
Additional preview pages of the QM150DY-24BK datasheet.

📁 Similar Datasheet

  • QM150ExY-xx - Darlington Transistor Modules (Powerex)
  • QM15DX-24 - Intelligent Power Module (Mitsubishi Electric)
  • QM10N60F - MOSFETs (UBIQ)
  • QM12N65B - N-Ch 650V Fast Switching MOSFETs (UBIQ)
  • QM12N65F - N-Ch 650V Fast Switching MOSFETs (UBIQ)
  • QM12N65P - N-Ch 650V Fast Switching MOSFET (UBIQ)
  • QM12N70F - N-Ch 700V Fast Switching MOSFET (UBIQ)
  • QM14501 - BeiDou Low Noise Amplifier (Qorvo)
  • QM14N65F - N-Ch 650V Fast Switching MOSFET (UBIQ)
  • QM18N20D - N-Channel 200V Fast Switching MOSFET (UBIQ)
Other Datasheets by Mitsubishi Electric Semiconductor

Full PDF Text Transcription

Click to expand full text

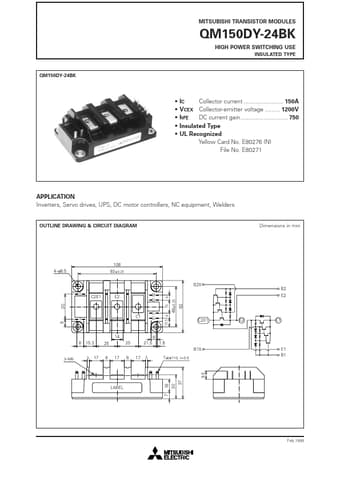

MITSUBISHI TRANSISTOR MODULES QM150DY-24BK HIGH POWER SWITCHING USE INSULATED TYPE QM150DY-24BK • • • • • IC Collector current ........................ 150A VCEX Collector-emitter voltage ......... 1200V hFE DC current gain............................. 750 Insulated Type UL Recognized Yellow Card No. E80276 (N) File No. E80271 APPLICATION Inverters, Servo drives, UPS, DC motor controllers, NC equipment, Welders OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 108 4–φ6.5 93±0.25 B2X B2 E2 B2 6 B2X C2E1 E2 E2 48±0.25 62 30 B1 E1 C1 10.5 6 15 B1X 9 C2E1 E2 C1 14 8 15.3 25 25 21.5 8 1.8 B1X E1 B1 3–M6 3 17 8 17 8 17 3 Tab#110, t=0.5 16 LABEL 7 30 37 9.5 Feb.
