QM150DY-3H Datasheet - Mitsubishi Electric Semiconductor

QM150DY-3H HIGH POWER SWITCHING USE INSULATED TYPE

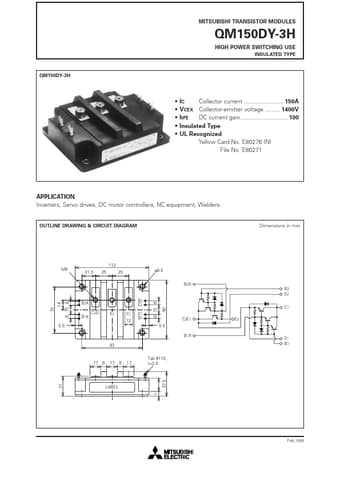

MITSUBISHI TRANSISTOR MODULES QM150DY-3H HIGH POWER SWITCHING USE INSULATED TYPE QM150DY-3H IC Collector current 150A VCEX Collector-emitter voltage 1400V hFE DC current gain 100 Insulated Type UL Recognized Yellow Card No. E80276 (N) File No. E80271 APPLICATION Inverters, Servo drives, DC motor controllers, NC equipment, Welders OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 113 M6 21.5 25 25 φ6.5 B2X B2 E2 6 15 6 6 15 6 14 B2.

QM150DY-3H_MitsubishiElectricSemiconductor.pdf

QM150DY-3H Datasheet Preview — Preview of QM150DY-3H PDF

Datasheet Details

Part number:

QM150DY-3H

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

78.20 KB

Description:

High power switching use insulated type.
