QM14501 BeiDou Low Noise Amplifier

5 Piece Sample Bag 100 Piece Reel 5000 Piece 13” Reel Fully Assembled Evaluation Board QM14501 DS Rev F | Subject to change without notice 1 of 12 www.qorvo.com QM14501 GPS, GLONASS, and BeiDou Low Noise Amplifier With Integrated Output SAW Filter Absolute Maximum Ratings Parameter VDD Logic <.

QM14501 GPS, GLONASS, and BeiDou Low Noise Amplifier With Integrated Output SAW Filter Product Overview The QM14501 is a Low Noise Amplifier with an integrated SAW filter at the output. The low noise figure and high gain make the QM14501 ideal for GNSS receivers requiring high sensitivity. This module uses pHEMT process and integrates input matching and low loss, high rejection SAW filter at the output. This results in a simplified and high-performing receiver design. The QM14501 is packaged in.

QM14501 Features

* Low Noise Figure: 0.9 dB

* Gain: 13.5 dB

* High IIP3: +8 dBm

* Current Tunability Via Single Resistor

* Operating frequencies: 1.55

* 1.61 GHz

* Small package: 3.3 mm x 2.1 mm x 1.0 mm (nominal) Applications

* Cellular and Non-Cellul

QM14501 Datasheet (633.41 KB)

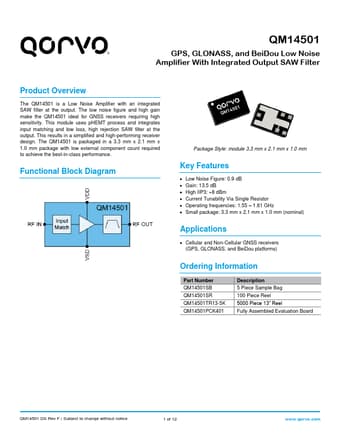

QM14501 Datasheet Preview — Preview of QM14501 PDF

Datasheet Details

Part number:

QM14501

Manufacturer:

Qorvo

File Size:

633.41 KB

Description:

Beidou low noise amplifier.
