QM100DY-24BK HIGH POWER SWITCHING USE INSULATED TYPE

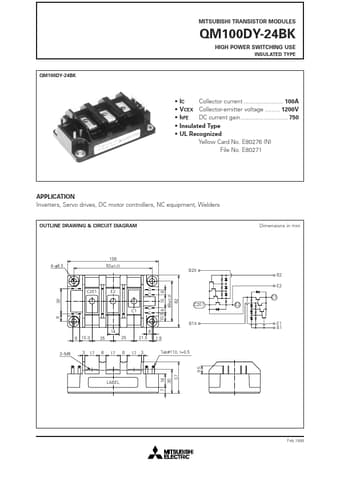

MITSUBISHI TRANSISTOR MODULES QM100DY-24BK HIGH POWER SWITCHING USE INSULATED TYPE QM100DY-24BK IC Collector current 100A VCEX Collector-emitter voltage 1200V hFE DC current gain 750 Insulated Type UL Recognized Yellow Card No. E80276 (N) File No. E80271 APPLICATION Inverters, Servo drives, DC motor controllers, NC equipment, Welders OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 108 4 φ6.5 93±0.25 B2X B2 E2 B2 E2 6 48±0.25.

QM100DY-24BK Datasheet (102.73 KB)

QM100DY-24BK Datasheet Preview — Preview of QM100DY-24BK PDF

Datasheet Details

Part number:

QM100DY-24BK

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

102.73 KB

Description:

High power switching use insulated type.
