QM100DY-2HK Datasheet - Mitsubishi Electric Semiconductor

QM100DY-2HK HIGH POWER SWITCHING USE INSULATED TYPE

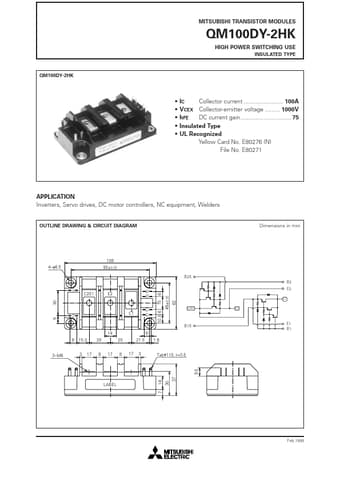

MITSUBISHI TRANSISTOR MODULES QM100DY-2HK HIGH POWER SWITCHING USE INSULATED TYPE QM100DY-2HK IC Collector current 100A VCEX Collector-emitter voltage 1000V hFE DC current gain 75 Insulated Type UL Recognized Yellow Card No. E80276 (N) File No. E80271 APPLICATION Inverters, Servo drives, DC motor controllers, NC equipment, Welders OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 108 4 φ6.5 93±0.25 B2X B2 E2 B2X 48±0.25 C2E1 .

QM100DY-2HK_MitsubishiElectricSemiconductor.pdf

QM100DY-2HK Datasheet Preview — Preview of QM100DY-2HK PDF

Datasheet Details

Part number:

QM100DY-2HK

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

101.52 KB

Description:

High power switching use insulated type.
