QM1000HA-24B HIGH POWER SWITCHING USE INSULATED TYPE

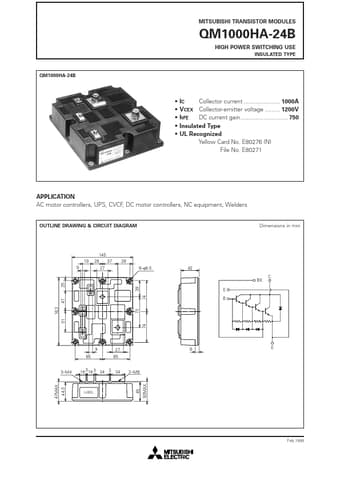

MITSUBISHI TRANSISTOR MODULES QM1000HA-24B HIGH POWER SWITCHING USE INSULATED TYPE QM1000HA-24B IC Collector current 1000A VCEX Collector-emitter voltage 1200V hFE DC current gain 750 Insulated Type UL Recognized Yellow Card No. E80276 (N) File No. E80271 APPLICATION AC motor controllers, UPS, CVCF, DC motor controllers, NC equipment, Welders OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 145 19 9 28 27 37 28 8 φ6.5 42 BX 25.

QM1000HA-24B_MitsubishiElectricSemiconductor.pdf

QM1000HA-24B Datasheet Preview — Preview of QM1000HA-24B PDF

Datasheet Details

Part number:

QM1000HA-24B

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

63.11 KB

Description:

High power switching use insulated type.
