QM1000HA-2HB Datasheet - Mitsubishi Electric Semiconductor

QM1000HA-2HB HIGH POWER SWITCHING USE INSULATED TYPE

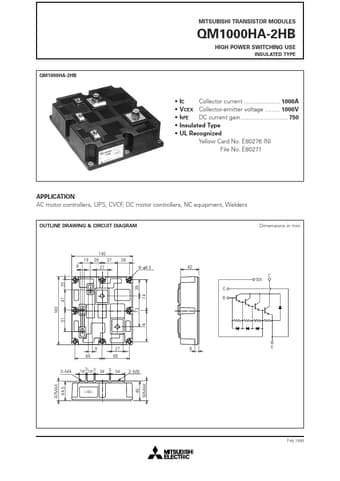

MITSUBISHI TRANSISTOR MODULES QM1000HA-2HB HIGH POWER SWITCHING USE INSULATED TYPE QM1000HA-2HB IC Collector current 1000A VCEX Collector-emitter voltage 1000V hFE DC current gain 750 Insulated Type UL Recognized Yellow Card No. E80276 (N) File No. E80271 APPLICATION AC motor controllers, UPS, CVCF, DC motor controllers, NC equipment, Welders OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 145 19 9 28 27 37 28 8 φ6.5 42 BX 25.

QM1000HA-2HB_MitsubishiElectricSemiconductor.pdf

QM1000HA-2HB Datasheet Preview — Preview of QM1000HA-2HB PDF

Datasheet Details

Part number:

QM1000HA-2HB

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

72.50 KB

Description:

High power switching use insulated type.
