QM100DY-24K Datasheet - Mitsubishi Electric Semiconductor

QM100DY-24K HIGH POWER SWITCHING USE INSULATED TYPE

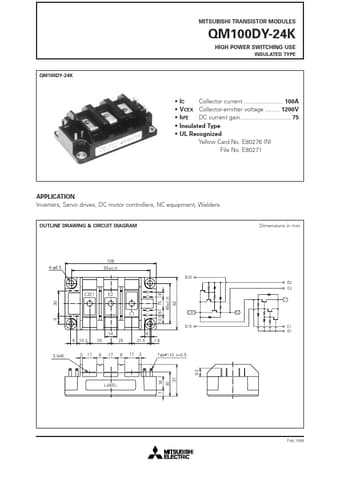

MITSUBISHI TRANSISTOR MODULES QM100DY-24K HIGH POWER SWITCHING USE INSULATED TYPE QM100DY-24K IC Collector current 100A VCEX Collector-emitter voltage 1200V hFE DC current gain 75 Insulated Type UL Recognized Yellow Card No. E80276 (N) File No. E80271 APPLICATION Inverters, Servo drives, DC motor controllers, NC equipment, Welders OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 108 4 φ6.5 93±0.25 B2X B2 E2 B2X 48±0.25 C2E1 .

QM100DY-24K Datasheet (101.67 KB)

QM100DY-24K Datasheet Preview — Preview of QM100DY-24K PDF

Datasheet Details

Part number:

QM100DY-24K

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

101.67 KB

Description:

High power switching use insulated type.
