QM100DY-HK HIGH POWER SWITCHING USE INSULATED TYPE

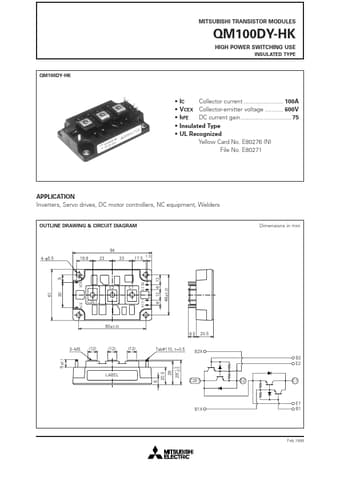

MITSUBISHI TRANSISTOR MODULES QM100DY-HK HIGH POWER SWITCHING USE INSULATED TYPE QM100DY-HK IC Collector current 100A VCEX Collector-emitter voltage 600V hFE DC current gain 75 Insulated Type UL Recognized Yellow Card No. E80276 (N) File No. E80271 APPLICATION Inverters, Servo drives, DC motor controllers, NC equipment, Welders OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 94 4 φ5.5 18.8 23 23 17.5 1.3 9 C2E1 80±0.25 9.5.

QM100DY-HK_MitsubishiElectricSemiconductor.pdf

QM100DY-HK Datasheet Preview — Preview of QM100DY-HK PDF

Datasheet Details

Part number:

QM100DY-HK

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

96.43 KB

Description:

High power switching use insulated type.
