QM100DY-2HBK HIGH POWER SWITCHING USE INSULATED TYPE

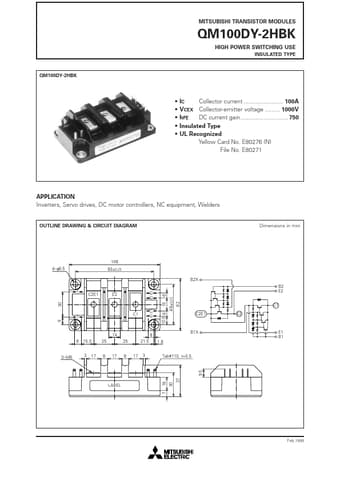

MITSUBISHI TRANSISTOR MODULES QM100DY-2HBK HIGH POWER SWITCHING USE INSULATED TYPE QM100DY-2HBK IC Collector current 100A VCEX Collector-emitter voltage 1000V hFE DC current gain 750 Insulated Type UL Recognized Yellow Card No. E80276 (N) File No. E80271 APPLICATION Inverters, Servo drives, DC motor controllers, NC equipment, Welders OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 108 4 φ6.5 93±0.25 B2X E2 B2 C2E1 E2 B2 E2.

QM100DY-2HBK_MitsubishiElectricSemiconductor.pdf

QM100DY-2HBK Datasheet Preview — Preview of QM100DY-2HBK PDF

Datasheet Details

Part number:

QM100DY-2HBK

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

102.69 KB

Description:

High power switching use insulated type.
