QM150DY-2HK HIGH POWER SWITCHING USE INSULATED TYPE

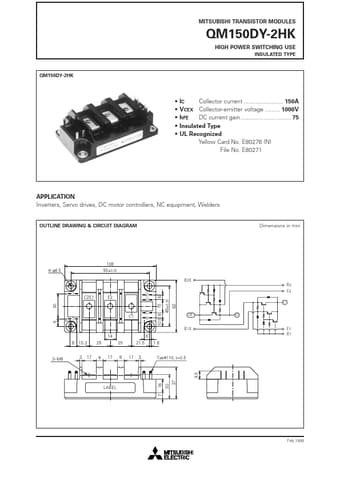

MITSUBISHI TRANSISTOR MODULES QM150DY-2HK HIGH POWER SWITCHING USE INSULATED TYPE QM150DY-2HK IC Collector current 150A VCEX Collector-emitter voltage 1000V hFE DC current gain 75 Insulated Type UL Recognized Yellow Card No. E80276 (N) File No. E80271 APPLICATION Inverters, Servo drives, DC motor controllers, NC equipment, Welders OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 108 4 φ6.5 93±0.25 B2X B2 E2 B2X 48±0.25 C2E1 .

QM150DY-2HK Datasheet (82.21 KB)

Preview of QM150DY-2HK PDF
QM150DY-2HK Datasheet Preview Page 2 QM150DY-2HK Datasheet Preview Page 3

Datasheet Details

Part number:

QM150DY-2HK

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

82.21 KB

Description:

High power switching use insulated type.
