QM150CY-H - Transistor Module

📥 Download Datasheet

Datasheet preview – QM150CY-H

Datasheet Details

Part number QM150CY-H
Manufacturer Mitsubishi Electric Semiconductor
File Size 75.17 KB
Description Transistor Module
Datasheet download datasheet QM150CY-H Datasheet
Additional preview pages of the QM150CY-H datasheet.

📁 Similar Datasheet

  • QM150ExY-xx - Darlington Transistor Modules (Powerex)
  • QM15DX-24 - Intelligent Power Module (Mitsubishi Electric)
  • QM10N60F - MOSFETs (UBIQ)
  • QM12N65B - N-Ch 650V Fast Switching MOSFETs (UBIQ)
  • QM12N65F - N-Ch 650V Fast Switching MOSFETs (UBIQ)
  • QM12N65P - N-Ch 650V Fast Switching MOSFET (UBIQ)
  • QM12N70F - N-Ch 700V Fast Switching MOSFET (UBIQ)
  • QM14501 - BeiDou Low Noise Amplifier (Qorvo)
  • QM14N65F - N-Ch 650V Fast Switching MOSFET (UBIQ)
  • QM18N20D - N-Channel 200V Fast Switching MOSFET (UBIQ)
Other Datasheets by Mitsubishi Electric Semiconductor

Full PDF Text Transcription

Click to expand full text

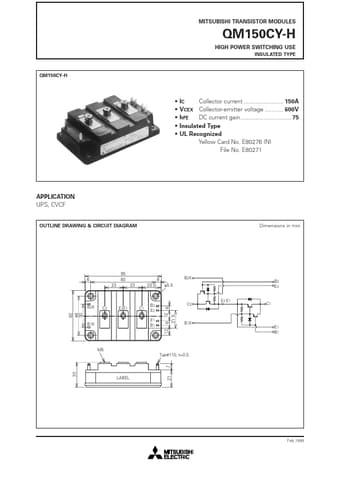

MITSUBISHI TRANSISTOR MODULES QM150CY-H HIGH POWER SWITCHING USE INSULATED TYPE QM150CY-H • • • • • IC Collector current ........................ 150A VCEX Collector-emitter voltage ........... 600V hFE DC current gain............................... 75 Insulated Type UL Recognized Yellow Card No. E80276 (N) File No. E80271 APPLICATION UPS, CVCF OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 6 23 95 80 23 23.5 6 φ5.5 B2X B2 E2 E 2 E1 B1X E1 B1 6 12 6 21.5 B2X 62 48 30 C2 E2E1 C1 B2 E2 C2 C1 B1X E1 B1 M5 Tab#110, t=0.5 7 30 LABEL 21 12 Feb.
