CM100MXA-24S Datasheet - Mitsubishi

CM100MXA-24S-Mitsubishi.pdf

CM100MXA-24S Datasheet Preview — Preview of CM100MXA-24S PDF

Datasheet Details

Part number:

CM100MXA-24S

Manufacturer:

Mitsubishi

File Size:

338.02 KB

Description:

Igbt.

CM100MXA-24S, IGBT

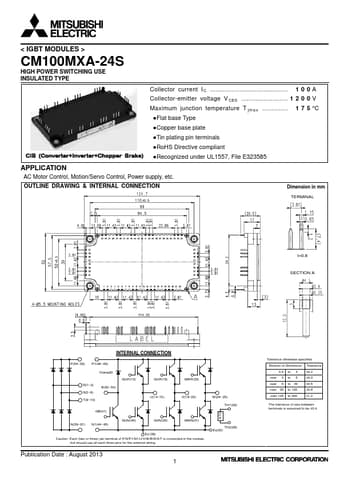

< IGBT MODULES > CM100MXA-24S HIGH POWER SWITCHING USE INSULATED TYPE CIB (Converter+Inverter+Chopper Brake) Collector current IC …… 1 0 0 A Collector-emitter voltage V CES … 1 2 0 0 V Maximum junction temperature T j m a x 1 7 5 °C Flat base Type Copper base plate Tin plating pin terminals RoHS Directive compliant Recognized under UL1557, File E323585 APPLICATION AC Motor Control, Motion/Servo Control, Power supply, etc.

OUTLINE DRAWING & INTERNAL CONNECTION Dimens
