FS12VS-5 Nch POWER MOSFET

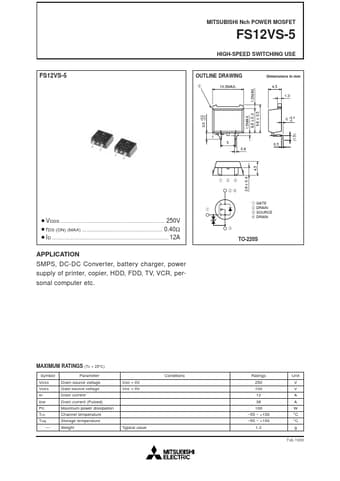

MITSUBISHI Nch POWER MOSFET FS12VS-5 HIGH-SPEED SWITCHING USE FS12VS-5 OUTLINE DRAWING r 1.5MAX. Dimensions in mm 4.5 1.3 10.5MAX. 1.5MAX. 8.6 ± 0.3 9.8 ± 0.5 3.0 +0.3 0.5 0 +0.3 0 1 5 0.8 0.5 q w e wr 2.6 ± 0.4 q ¡VDSS 250V ¡rDS (ON) (MAX) 0.40Ω ¡ID 12A q GATE w DRAIN e SOURCE r DRAIN e TO-220S APPLICATION SMPS, DC-DC Converter, battery charger, power supply of printer, copier, HDD, FDD, TV, VCR, personal computer etc. MAXIMUM RATINGS Symbol VDSS VGSS ID I.
