M30612M4A

SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER

M30612M4A Features

* Memory capacity ROM (See Figure 1.1.4. ROM Expansion) RAM 4K to 10K bytes

* Shortest instruction execution time 100ns (f(XIN)=10MHZ)

* Supply voltage 4.0 to 5.5V (f(XIN)=10MHZ) 2.7 to 5.5V (f(XIN)=7MHZ with software one-wait)

* Low power consumption 18mW ( f(XIN

M30612M4A General Description

M16C / 61 Group SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER Description The M16C/61 group of single-chip microcomputers are built using the high-performance silicon gate CMOS process using a M16C/60 Series CPU core and are packaged in a 100-pin plastic molded QFP. These single-chip microcomputers operat.

M30612M4A Datasheet (2.61 MB)

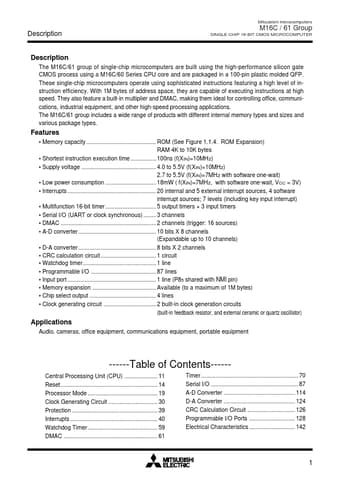

Preview of M30612M4A PDF

Datasheet Details

Part number:

M30612M4A

Manufacturer:

Mitsubishi

File Size:

2.61 MB

Description:

Single-chip 16-bit cmos microcomputer.
