M3060C - Dual Common Cathode Schottky Rectifier

Datasheet Summary

Features

  • Power pack.
  • Guardring for overvoltage protection.
  • Lower power losses, high efficiency.
  • Low forward voltage drop.
  • High forward surge capability.
  • High frequency operation.
  • Solder dip 275 °C max.10 s, per JESD 22-B106.
  • Material categorization: For definitions of compliance please see www. vishay. com/doc?99912.

📥 Download Datasheet

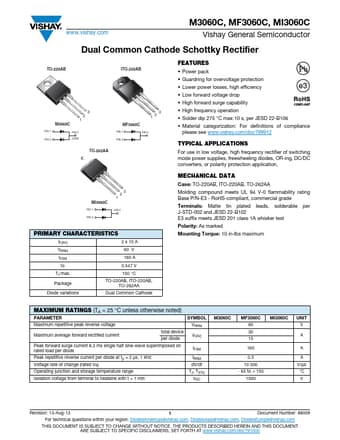

Datasheet preview – M3060C

Datasheet Details

Part number M3060C
Manufacturer Vishay
File Size 140.09 KB
Description Dual Common Cathode Schottky Rectifier
Datasheet download datasheet M3060C Datasheet
Additional preview pages of the M3060C datasheet.
