M30612E4 - SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER

This page provides the datasheet information for the M30612E4, a member of the M30 SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER family.

Datasheet Summary

Description

The M16C/61 group of single-chip microcomputers are built using the high-performance silicon gate CMOS process using a M16C/60 Series CPU core and are packaged in a 100-pin plastic molded QFP.

Features

Memory capacity ROM (See Figure 1.1.4. ROM Expansion) RAM 4K to 10K bytes.
Shortest instruction execution time 100ns (f(XIN)=10MHZ).
Supply voltage 4.0 to 5.5V (f(XIN)=10MHZ) 2.7 to 5.5V (f(XIN)=7MHZ with software one-wait).
Low power consumption 18mW ( f(XIN)=7MHZ, with software one-wait, VCC = 3V).
Interrupts 20 internal and 5 external interrupt sources, 4 software interrupt sources; 7 levels (including key input interrupt).
Multifunc.

Datasheet Details

Part number	M30612E4
Manufacturer	Mitsubishi
File Size	2.61 MB
Description	SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER
Datasheet	M30612E4 Datasheet
Additional preview pages of the M30612E4 datasheet.

📁 Similar Datasheet

M3060C - Dual Common Cathode Schottky Rectifier (Vishay)

M30620FCAFP - 16-BIT SINGLE-CHIP MICROCOMPUTER (Renesas Technology)

M30620FCAGP - 16-BIT SINGLE-CHIP MICROCOMPUTER (Renesas Technology)

M30620FCMFP - 16-BIT SINGLE-CHIP MICROCOMPUTER (Renesas Technology)

M30620FCMGP - 16-BIT SINGLE-CHIP MICROCOMPUTER (Renesas Technology)

M30620FCPFP - SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER (Renesas Technology)

M30620FCPGP - Single-Chip 16 Bit CMOS Microcomputer (Renesas)

M30620FCPGP - SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER (Renesas Technology)

M30620M8A-XXXFP - 16-BIT SINGLE-CHIP MICROCOMPUTER (Renesas Technology)

M30620M8A-XXXGP - 16-BIT SINGLE-CHIP MICROCOMPUTER (Renesas Technology)

Full PDF Text Transcription

Click to expand full text

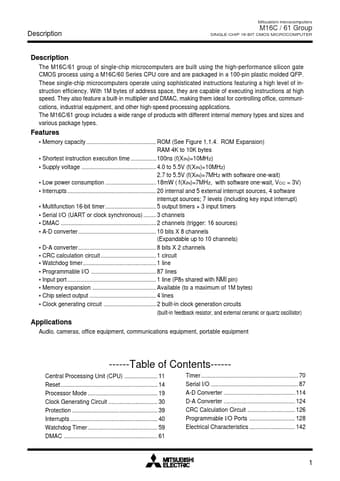

Mitsubishi microcomputers Description M16C / 61 Group SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER Description The M16C/61 group of single-chip microcomputers are built using the high-performance silicon gate CMOS process using a M16C/60 Series CPU core and are packaged in a 100-pin plastic molded QFP. These single-chip microcomputers operate using sophisticated instructions featuring a high level of instruction efficiency. With 1M bytes of address space, they are capable of executing instructions at high speed. They also feature a built-in multiplier and DMAC, making them ideal for controlling office, communications, industrial equipment, and other high-speed processing applications.
