M37410E6HFS Datasheet PDF - Mitsubishi PROM Specs

M37410E6HFS - PROM

This page provides the datasheet information for the M37410E6HFS, a member of the M37410E6HXXXFP PROM family.

Datasheet Summary

Description

The M37410E6HFS, M37410E6HXXXFP are single-chip microcomputers designed with CMOS silicon gate technology.

M37410E6HXXXFP is housed in a 80-pin shrink plastic molded QFP.

M37410E6HFS is housed in a 80-pin ceramic QFP.

Features

of M37410E6HXXXFP are similar to those of the M37410M4HXXXFP except that this chip has a 12288 bytes PROM built in. This single-chip microcomputer is useful for home electrical appliances and consumer appliance controllers. In addition to its simple instruction sets, the PROM, RAM, and I/O addresses are placed on the same memory map to enable easy programming. Since general purpose PROM writers can be used for the built-in PROM, this chip is suitable for small quantity production runs. The M3741.

Datasheet Details

Part number	M37410E6HFS
Manufacturer	Mitsubishi
File Size	738.61 KB
Description	PROM
Datasheet	M37410E6HFS Datasheet

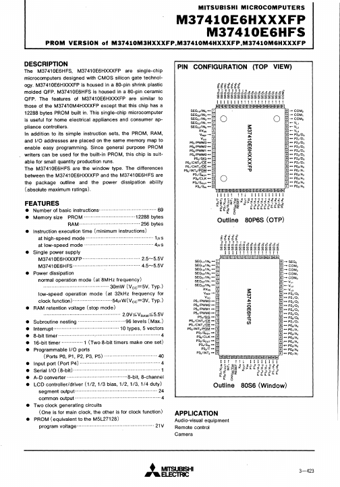

Additional preview pages of the M37410E6HFS datasheet.

📁 Similar Datasheet

M3740B - 4 SIREN (ETC)

M374S1723FTS-C7A - SDRAM Unbuffered Module (Samsung)

M374S1723FTU-C7A - SDRAM Unbuffered Module (Samsung)

M374S3323ETS-C7A - (M3xxSxxxxETx-C7A) SDRAM Unbuffered Module (Samsung semiconductor)

M374S3323ETU-C7A - (M3xxSxxxxETx-C7A) SDRAM Unbuffered Module (Samsung semiconductor)

M374S3323FTS-C7A - SDRAM Unbuffered Module (Samsung)

M374S3323FTU-C7A - SDRAM Unbuffered Module (Samsung)

M3710A - ON/OFF SIREN (ETC)

M37150EFFP - (M37150xx) SNGLE-CHIP 8-BIT CMOS MICROCOMPUTER (Renesas Technology)

M37150M6 - (M37150xx) SNGLE-CHIP 8-BIT CMOS MICROCOMPUTER (Renesas Technology)

Full PDF Text Transcription

Click to expand full text

MITSUBISHI MICROCOMPUTERS M37410E6HXXXFP M37410E6HFS PROM VERSION of M37410M3HXXXFP,M37410M4HXXXFP,M37410M6HXXXFP DESCRIPTION The M37410E6HFS, M37410E6HXXXFP are single-chip microcomputers designed with CMOS silicon gate technology. M37410E6HXXXFP is housed in a 80-pin shrink plastic molded QFP. M37410E6HFS is housed in a 80-pin ceramic QFP. The features of M37410E6HXXXFP are similar to those of the M37410M4HXXXFP except that this chip has a 12288 bytes PROM built in. This single-chip microcomputer is useful for home electrical appliances and consumer appliance controllers. In addition to its simple instruction sets, the PROM, RAM, and I/O addresses are placed on the same memory map to enable easy programming.
