M37413M6HXXXFP, M37413M4HXXXFP Datasheet - Mitsubishi

M37413M6HXXXFP, M37413M4HXXXFP, SINGLE CHIP 8-BIT CMOS MICROCOMPUTER

MITSUBISH'I MICROCOMPUTERS M37413M4HXXXFP M37413M6HXXXFP SINGLE-CHIP a-BIT CMOS MICROCOMPUTER .
The M37413M4HXXXFP is a single-chip microcomputer designed with CMOS silicon gate technology.

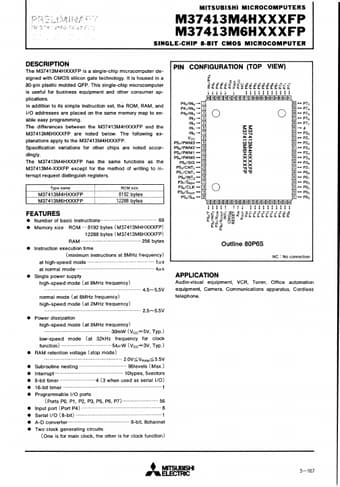

datasheet Preview Page 1 from Datasheet4u.com

M37413M4HXXXFP-Mitsubishi.pdf

M37413M6HXXXFP Datasheet Preview — This datasheet PDF includes multiple part numbers: M37413M6HXXXFP, M37413M4HXXXFP. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

M37413M6HXXXFP, M37413M4HXXXFP

Manufacturer:

Mitsubishi

File Size:

1.75 MB

Description:

SINGLE CHIP 8-BIT CMOS MICROCOMPUTER

Note:

This datasheet PDF includes multiple part numbers: M37413M6HXXXFP, M37413M4HXXXFP.
Please refer to the document for exact specifications by model.

Features

* Number of basic instructions" 69
* Memory size ROM . .
* 8192 bytes (M37413M4HXXXFP) 12

Applications

* In addition to its simple instruction set, the ROM, RAM, and I/O addresses are placed on the same memory map to enable easy programming. The differences between the M37413M4HXXXFP and the M37413M6HXXXFP are noted below. The following explanations apply to the M37413M4HXXXFP. Specification variation
