M37413E6HFS, M37413E6HXXXFP - PROM

Mitsubishi

📥 Download Datasheet

M37413E6HFS Datasheet Preview — This datasheet PDF includes multiple part numbers: M37413E6HFS, M37413E6HXXXFP. Please refer to the document for exact specifications by model.

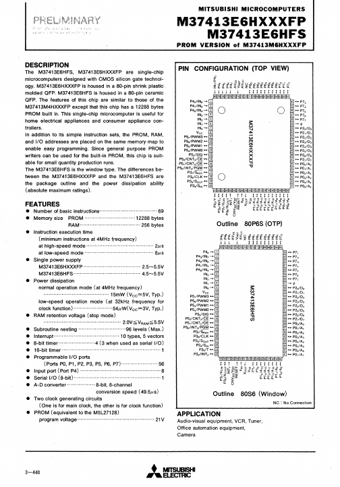

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	M37413E6HFS, M37413E6HXXXFP
Manufacturer	Mitsubishi
File Size	663.12 KB
Description	PROM
Datasheet	M37413E6HXXXFP-Mitsubishi.pdf
Note	This datasheet PDF includes multiple part numbers: M37413E6HFS, M37413E6HXXXFP. Please refer to the document for exact specifications by model.

M37413E6HFS Product details

Description

The M37413E6HFS.

Features

of this chip are similar to those of the M37413M4HXXXFP except that this chip has a 12288 bytes PROM built in. This single-chip microcomputer is useful for home electrical appliances and consumer appliance controllers. In addition to its simple instruction sets. the PROM. RAM. and I/O addresses are placed on the same memory map to enable easy programming. Since general purpose PROM writers can be used for the built-in PROM. this chip is suitable for small quantity production runs. The M37413E6HF.
