M37421M6-XXXFP, M37421M6-XXXSP - SINGLE CHIP 8-BIT CMOS MICROCOMPUTER

Mitsubishi

📥 Download Datasheet

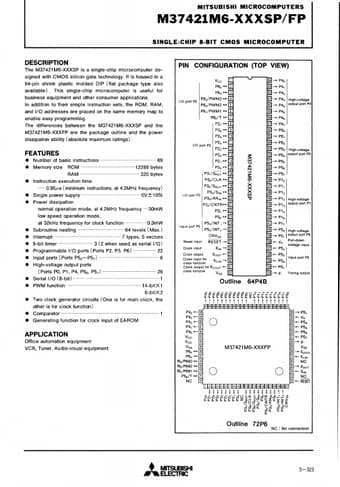

M37421M6-XXXFP Datasheet Preview — This datasheet PDF includes multiple part numbers: M37421M6-XXXFP, M37421M6-XXXSP. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	M37421M6-XXXFP, M37421M6-XXXSP
Manufacturer	Mitsubishi
File Size	1.82 MB
Description	SINGLE CHIP 8-BIT CMOS MICROCOMPUTER
Datasheet	M37421M6-XXXSP-Mitsubishi.pdf
Note	This datasheet PDF includes multiple part numbers: M37421M6-XXXFP, M37421M6-XXXSP. Please refer to the document for exact specifications by model.

M37421M6-XXXFP Product details

Description

The M37421 M6-XXXSP is a single-chip microcomputer designed with CMOS silicon gate technology.

Features

Number of basic instructions.
69.
Memory size ROM.
12288 bytes RAM.
320 bytes.
Instruction execution time.
0.95.
