M52342FP

PLL-SPLIT VIF/SIF IC

M52342FP Features

* RF AGC OUT VIF IN VIF IN GND GND GND QIF DET IN

* Video detection output is 2VP-P. It has built-in EQ AMP. The package is a 24-pin flat package, suitable for space saving. The video detector uses PLL for full synchronous detection circuit. It produce

M52342FP General Description

The M52342FP is IF signal-processing IC for VCRs and TVs. It enable the PLL detection system despite size as small as that of conventional quasi-synchronous VIF/SIF detector, IF/RF AGC, SIF limiter, FM detector, QIF AGC and EQ AMP. RF AGC DELAY AFT OUT 1 2 3 4 5 6 7 8 9 24 EQ F/B 23 APC FILTER 22 VI.

M52342FP Datasheet (97.45 KB)

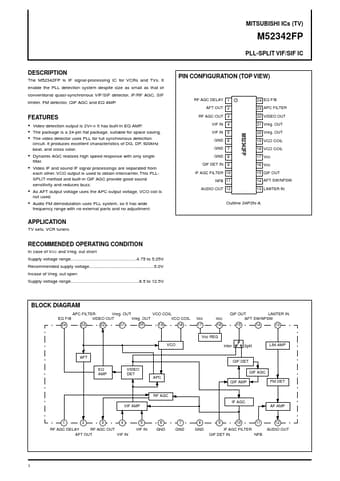

Preview of M52342FP PDF

Datasheet Details

Part number:

M52342FP

Manufacturer:

Mitsubishi

File Size:

97.45 KB

Description:

Pll-split vif/sif ic.
