M52347FP - SYNC SIGNAL PROCESSOR

Mitsubishi

📥 Download Datasheet

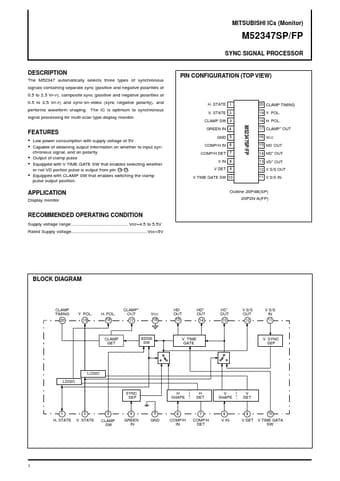

M52347FP Datasheet Preview — Preview of M52347FP PDF

Datasheet Details

Part number	M52347FP
Manufacturer	Mitsubishi
File Size	131.80 KB
Description	SYNC SIGNAL PROCESSOR
Datasheet	M52347FP_MitsubishiElectricSemiconductor.pdf

M52347FP Product details

Description

The M52347 automatically selects three types of synchronous signals containing separate sync (positive and negative polarities of 0.5 to 2.5 VP-P), composite sync (positive and negative polarities of 0.5 to 2.5 VP-P) and sync-on-video (sync negative polarity), and performs waveform shaping.

Features

GREEN IN 4 GND 5 COMP/H IN 6 COMP/H DET 7 V IN 8 V DET 9 V TIME GATE SW 10 17 CLAMP+ OUT 16 VCC 15 HD- OUT 14 HD+ OUT 13 VD+ OUT 12 V S/S OUT 11 V S/S IN.
Low power consumption with supply voltage of 5V Capable of obtaining output information on whether to input synchronous signal, and on polarity Output of clamp pulse Equipped with V TIME GATE SW that enables selecting whether or not VD portion pulse is output from pin 14 / 15 . Equipped with.
