M52348SP

WIDE FREQUENCY BAND ANALOG SWITCH

M52348SP Features

* INPUT1(V) GND INPUT2(V) GND INPUT2(G) GND INPUT2(B)

* Frequency band : RGB250MHz HV10Hz to 200kHz Input level : RGB0.7 V P-P (typ.) HV TTL IN PUT 3 to 5 Vo-p (bipolar) Only the G channel is equipped with output for sync-on-video. HV output adopts TTL format. 20 OUTPU

M52348SP General Description

The M52348SP is an semiconductor IC for RGBHV interface that switches signals input from two types of image source and outputs them to CRT display etc. The synchronous signal meets the frequency band of 10 kHz to 200 kHz and is output with TTL. The IC adopts 250 MHz for the frequency band width of v.

M52348SP Datasheet (67.12 KB)

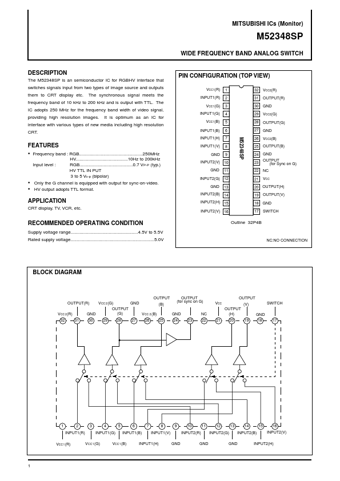

Preview of M52348SP PDF

Datasheet Details

Part number:

M52348SP

Manufacturer:

Mitsubishi

File Size:

67.12 KB

Description:

Wide frequency band analog switch.
