Part number: M56620AP
Manufacturer: Mitsubishi
File Size: 417.76KB
Download: 📄 Datasheet

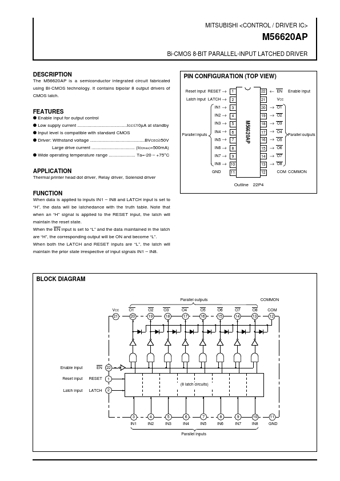

Description: Bi-CMOS 8-BIT PARALLEL-INPUT LATCHED DRIVER
q Enable input for output control q Low supply current .........ICC≤10µA at standby q Input level is compatible with standard CMOS q Driver: Withstand voltage ...BVCEO≥50.
The M56620AP is a semiconductor integrated circuit fabricated using Bi-CMOS technology. It contains bipolar 8 output drivers of CMOS latch.
PIN CONFIGURATION (TOP VIEW)
Reset input RESET → Latch input LATCH → IN1 → IN2 → IN3 → Parallel inputs IN4 → .
