M56710FP - F2F MAGNETIC STRIPE ENCORDING CARD READER

Mitsubishi

📥 Download Datasheet

M56710FP Datasheet Preview — Preview of M56710FP PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: M56710FP
Manufacturer: Mitsubishi
File Size: 184.94 KB
Datasheet: M56710FP_MitsubishiElectricSemiconductor.pdf
Description: F2F MAGNETIC STRIPE ENCORDING CARD READER

M56710FP Product details

Description

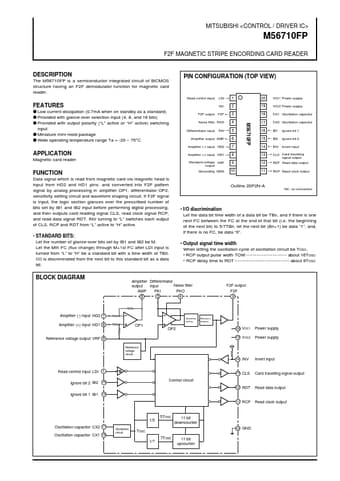

The M56710FP is a semiconductor integrated circuit of BiCMOS structure having an F2F demodulator function for magnetic card reader.

Features

q Low current dissipation (0.7mA when on standby as a standard) q Provided with glance-over selection input (4, 8, and 16 bits) q Provided with output polarity (“L” active or “H” active) switching input q Miniature mini-mold package q Wide operating temperature range Ta = -20.
75°C 2 F2F output F2F ← 3 Noise filter PKO Differentiator input 4 M56710FP PKI → 5 16 ← IB1 Ignore bit 1 15 ← IB2 Ignore bit 2 14 ← INV Invert input 13 → CLS Card travelling 12 → RDT Read data output 11 → RC.
