M56753FP Datasheet - Mitsubishi

2-CHANNEL ACTUATOR MOTOR DRIVER

M56753FP Features

* q Low output saturation voltage (typ. 1.35V at 0.5A). q Wide operating supply voltage range (4.5 to 15V). q High current drive capability (maximum 0.9A). q Low crossover distortion. q High frequency capability. VM1+ M56753FP APPLICATION DVD, DVD-ROM CD-ROM, CD PLAYER VM1CTL1OUT CTL1+ CTL1TSDS VR

M56753FP General Description

The M56753FP is a semiconductor IC developed as the motor driver used DVD, DVD-ROM, CD-ROM and CD Player. This device include 2 channel BTL drivers and can drive 2 actuators with one IC at the same time. Also, the mute circuit, thermal protection circuit and VREF voltage monitor circuit functions ar.

M56753FP Datasheet (145.86 KB)

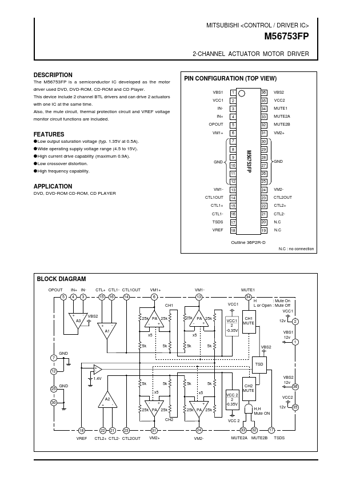

M56753FP Datasheet Preview — Preview of M56753FP PDF

Datasheet Details

Part number:

M56753FP

Manufacturer:

Mitsubishi

File Size:

145.86 KB

Description:

2-channel actuator motor driver.
