M56755FP Datasheet - Mitsubishi

SPINDLE MOTOR DRIVER

M56755FP Features

* q The supply voltage with wide range. (4.5V to 13.2V) q High motor drive current (1.2A) q Motor current control for the both motor torque is possible. q Reverse torque mode select (SHORT BRAKING, etc) q Sleep mode q Hall amplifier sensitivity select q Automatic stop select (with reverse detected sig

M56755FP General Description

The M56755FP is a semiconductor integrated circuit designed for a single chip controller for CD-ROM spindle motor. M56755FP has a both (forward and reverse) motor torque control by the motor speed control terminal. M56755FP has the several braking mode that an user can flexibly select in order to ge.

M56755FP Datasheet (767.41 KB)

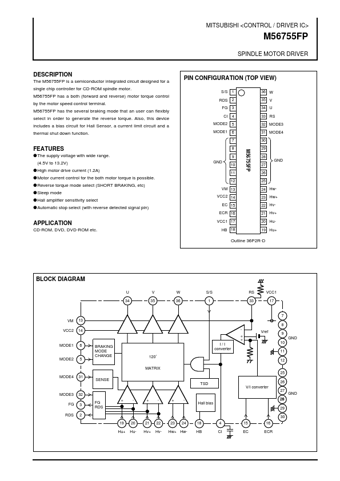

M56755FP Datasheet Preview — Preview of M56755FP PDF

Datasheet Details

Part number:

M56755FP

Manufacturer:

Mitsubishi

File Size:

767.41 KB

Description:

Spindle motor driver.
