M56754SP Datasheet - Mitsubishi

4-CHANNEL ACTUATOR MOTOR DRIVER

M56754SP Features

* q q q q Low Output saturation voltage(typ:1.35V at 0.5A) Large operating supply voltage range(4.5

* 13.2V) Minimum Crossover distortion Built-in general operational amplifier Vm1 Vctl1L Vctl1H VM1(-) VM1(+) APPLICATION CD-ROM, CD player Outline 32P4B M56754SP BLOCK DIAGRAM Vm1 Vbs1 3 2 VC

M56754SP General Description

The M56754SP is a semiconductor IC developed as the motor driver used for CD-ROM and CD player. This circuit includes 4-Channel BTL Driver that is able to drive four actuator with one IC. PIN CONFIGURATION (TOP VIEW) VCC Vbs1 1 2 3 4 5 6 7 8 GND 9 10 VM2(+) VM2(-) Vctl2 A1+ A1A1out 11 12 13 14 15 1.

M56754SP Datasheet (898.46 KB)

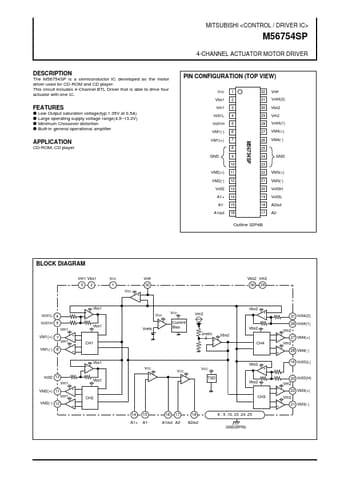

M56754SP Datasheet Preview — Preview of M56754SP PDF

Datasheet Details

Part number:

M56754SP

Manufacturer:

Mitsubishi

File Size:

898.46 KB

Description:

4-channel actuator motor driver.
