M56758FP

5 CHANNEL ACTUATOR MOTOR DRIVER

M56758FP Features

* q 3.3V DSP available q Low saturation voltage. (Typical 1.35V at load current 0.5A and no bootstrap condition.) Absolute maximum rating of load current: CH1

* 5 500mA A bootstrap function is available. q There are two motor power supplies. Vm1 CH1, 2 motor power supply-1 Vm2 CH3, 4, 5 motor

M56758FP General Description

The M56758FP is a semiconductor integrated circuit designed for a actuator driver used for MD, CD-audio, etc. This device can function 5-channel-actuators by 1 chip due to include 5 channel BTL drivers. Sufficient output dynamic range can be obtained by low supply voltage because saturation voltage .

M56758FP Datasheet (334.08 KB)

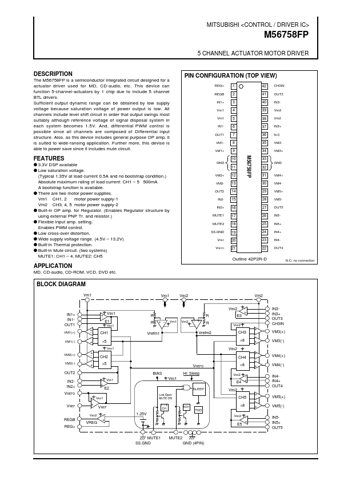

Preview of M56758FP PDF

Datasheet Details

Part number:

M56758FP

Manufacturer:

Mitsubishi

File Size:

334.08 KB

Description:

5 channel actuator motor driver.
