M56759AFP

4-CHANNEL ACTUATOR DRIVER

M56759AFP Features

* q Low saturation voltage (at bootstrap). q (typical 0.7V at load current 500mA) q Wide supply voltage range. (4.5V to 13.2V) q Low cross-over distortion. q Two naked Operational Amplifiers q Divided Motor power supplies into three parts OUT3 VM3(-) VM3(+) M56759FP/AFP APPLICATION CD-ROM IN4AVm2

M56759AFP General Description

The M56759 is a semiconductor integrated circuit designed for a CD-ROM actuator driver. This device can function 4-channelactuators by 1 chip due to include 4 channel BTL drivers. Three channels of this device, ch1, ch2 and ch3 can be controlled by PWM pulse. Two of them, ch1 and ch2 can also act in.

M56759AFP Datasheet (381.24 KB)

Preview of M56759AFP PDF

Datasheet Details

Part number:

M56759AFP

Manufacturer:

Mitsubishi

File Size:

381.24 KB

Description:

4-channel actuator driver.

📁 Related Datasheet

M56759FP 4-CHANNEL ACTUATOR DRIVER (Mitsubishi)

M56750FP 3-PHASE BRUSHLESS MOTOR DRIVER (Hitachi)

M56753FP 2-CHANNEL ACTUATOR MOTOR DRIVER (Mitsubishi)

M56754SP 4-CHANNEL ACTUATOR MOTOR DRIVER (Mitsubishi)

M56755AFP SPINDLE MOTOR DRIVER (Mitsubishi)

M56755FP SPINDLE MOTOR DRIVER (Mitsubishi)

M56758FP 5 CHANNEL ACTUATOR MOTOR DRIVER (Mitsubishi)

M56710FP F2F MAGNETIC STRIPE ENCORDING CARD READER (Mitsubishi)

M56710FP F2F Magnetic Stripe Encoding Card Reader (Renesas Technology)

M56733AFP 3-Phase Brushless Motor Driver (Renesas)

TAGS

M56759AFP 4-CHANNEL ACTUATOR DRIVER Mitsubishi

Image Gallery

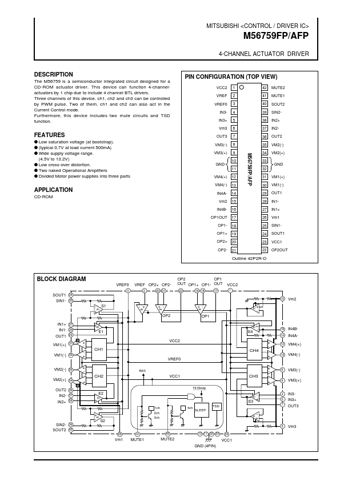

M56759AFP Datasheet Preview Page 2 M56759AFP Datasheet Preview Page 3
