M56733AFP Datasheet - Renesas

3-Phase Brushless Motor Driver

M56733AFP Features

* Digital servo provides high precision, good stability, and freedom from the need for adjustment.

* A single pin controls switching between three speed.

* MOD

* Two enable signals.

* EN, EN

* IO (peak) = 1.0 A

M56733AFP General Description

The M56733AFP is a semiconductor integrated circuit designed as a single-chip controller for FDD spindle motors. It incorporates a power amplifier, Hall amplifier, FG amplifier, oscillator, and speed discriminator, along with various protective circuits. Control of switching between three speeds by .

M56733AFP Datasheet (175.27 KB)

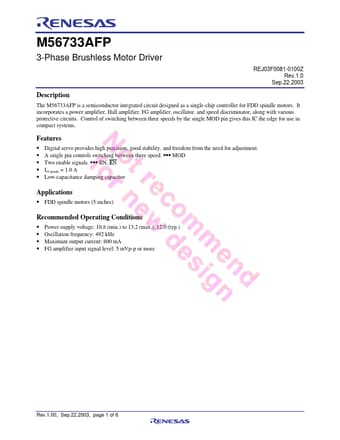

Preview of M56733AFP PDF

Datasheet Details

Part number:

M56733AFP

Manufacturer:

Renesas ↗

File Size:

175.27 KB

Description:

3-phase brushless motor driver.
