M56748FP datasheet, driver equivalent, Mitsubishi

M56748FP Features and benefits

q Low Output saturation voltage (typ:1.35V,at 0.5A) q Large Operating supply voltage range (4.5
– 15V) q Minimum Crossover distortion Gain1 Vctl1(-) VM1(.

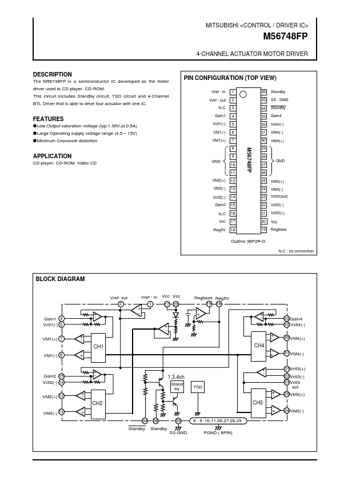

M56748FP Description

The M56748FP is a semiconductor IC developed as the motor driver used to CD player, CD-ROM. This circuit includes Standby circuit, TSD circuit and 4-Channel BTL Driver that is able to drive four actuator with one IC. PIN CONFIGURATION (TOP VIEW) Vre.
