SPINDLE MOTOR DRIVER

M56755AFP Features

* q 3.3V DSP available. q The supply voltage with wide range. (4.5V to 13.2V) q High motor drive current (1.2A). q Motor current control for the both motor torque is possible. q Reverse torque mode select [SHORT BRAKING, etc] q Sleep mode q Hall amplifier sensitivity select q Automatic stop select (wi

M56755AFP General Description

The M56755AFP is a semiconductor integrated circuit designed for a single chip controller for CD-ROM spindle motor. M56755AFP has a both (forward and reverse) motor torque control by the motor speed control terminal. M56755AFP has the several braking mode that an user can flexibly select in order to.

M56755AFP Datasheet (213.87 KB)

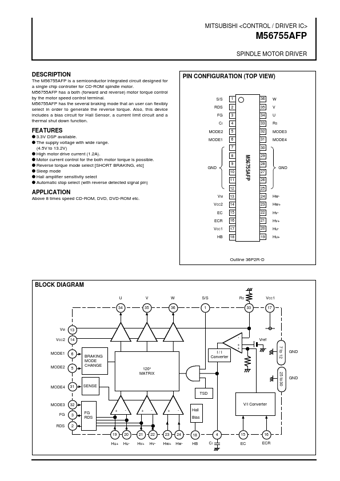

Preview of M56755AFP PDF

Datasheet Details

Part number:

M56755AFP

Manufacturer:

Mitsubishi

File Size:

213.87 KB

Description:

Spindle motor driver.
