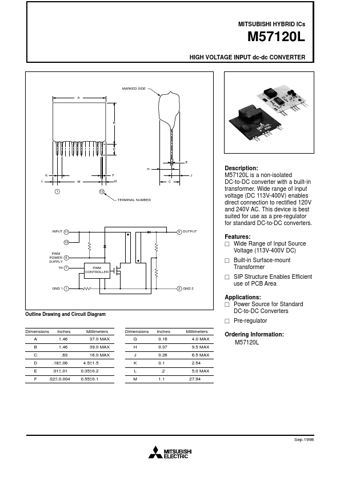

M57120L Datasheet, Converter, Mitsubishi

✔ M57120L Features

ٗ Wide Range of Input Source Voltage (113V-400V DC) INPUT 11 12 PWM POWER 6 SUPPLY TP 7 PWM CONTROLLER 5 OUTPUT ٗ Built-in Surface-mount Transformer ٗ SIP Structure E

✔ M57120L Application

ٗ Power Source for Standard DC-to-DC Converters ٗ Pre-regulator Dimensions A B C D E F Inches 1.46 1.46 .

PDF File Details

Mitsubishi manufacturer logo

Part number:

M57120L

Manufacturer:

Mitsubishi

File Size:

63.28kb

Download:

📄 Datasheet

Description:

High voltage input dc-dc converter. M57120L is a non-isolated DC-to-DC converter with a built-in transformer. Wide range of input voltage (DC 113V-400V) enables direct

📥 Download PDF (63.28kb)
