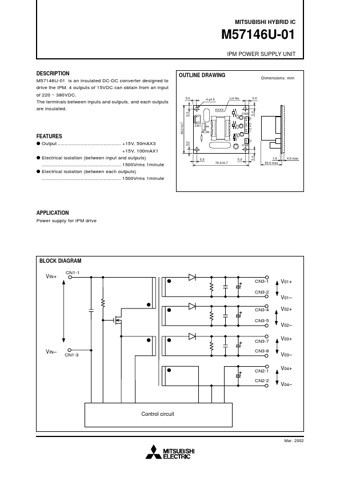

M57146U-01 Datasheet, Unit, Mitsubishi

✔ M57146U-01 Features

q Output +15V, 50mAX3 +15V, 100mAX1 q Electrical isolation (between input and outputs) 1500Vrms 1minute q Electrical isolation (between each outputs) 1500Vrms 1minute

PDF File Details

Mitsubishi manufacturer logo

Part number:

M57146U-01

Manufacturer:

Mitsubishi

File Size:

31.61kb

Download:

📄 Datasheet

Description:

Ipm power supply unit. M57146U-01 is an insulated DC-DC converter designed to drive the IPM. 4 outputs of 15VDC can obtain from an input of 220 ~ 380VDC. Th
