M57184N-715B Datasheet, Converter, Powerex Power Semiconductors

M57184N-715B Features

• Converter £ Input Voltage Range DC 140V ~ 360V �� ������� �������� ������� �������� �� ����� ���� ������ £ Output Specifications �� ������ �� 15V, 350mA and 5V, 200mA Applications: Outlin

PDF File Details

Part number:

M57184N-715B

Manufacturer:

Powerex Power Semiconductors

File Size:

170.00kb

Download:

📄 Datasheet

Description:

High voltage input dc-to-dc converter. M57184N-715B is a non-isolated step down DC-to-DC converter designed to take direct input of 140 ~ 360 VDC and provide 2 outputs. On

M57184N-715B Application

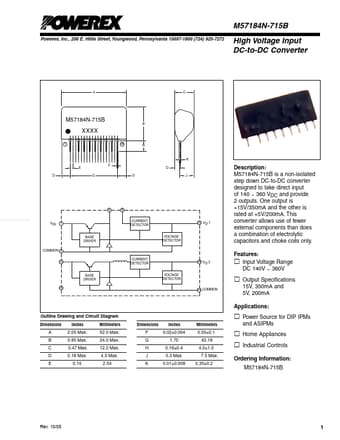

• Applications Outline Drawing and Circuit Diagram Dimensions A B C D E Inches 2.05 Max. 0.95 Max. 0.47 Max. 0.18 Max. 0.10 Millimeters 52.0 Max. 24
